What is a solenoid? Solenoid is is an actuator that uses electricity to create magnetic field. Solenoid usually consists of solenoid coil and a movable core called core tube. In principle, solenoid uses electromagnetic force to control valves or other kinds of mechanism. So that, solenoid is widely applied into hydraulic solenoid valve, power switches, crane and etc.
How does a solenoid work? Specifically, when solenoid is charged, a current flow through the wires and an electromagnetic field is created. Conversely, the state of device is closed when turn off the current. In a word, solenoid can control the switch or flow by controlling the magnitude of current.

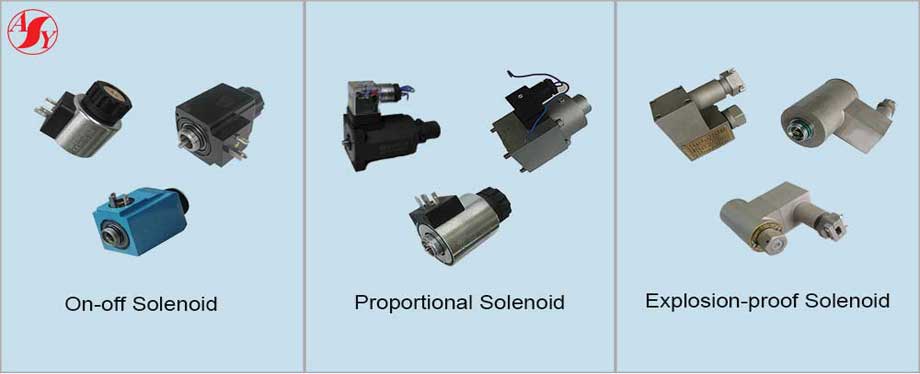

The hydraulic solenoid for valve is a common type among all kinds of solenoid. As a leading solenoid supplier in China, KaiDi introduces three typical hydraulic solenoid: On-Off solenoid, Proportional solenoid and explosion-proof solenoid.
On-Off solenoid
On off solenoid refers to the that keep the position of two settled points, it is also referred to as on-off hydraulic solenoid. On-off solenoids do not apply for keep the position between two points. As a result, the solenoid of this kind is suitable for switching applications that device control the directed flow, pressure or other value between two points. One of application areas of on-off solenoid is hydraulic directional valve. There are three typical types of on-off solenoid for hydraulic directional valves, including Rexroth on-off solenoid, Yuken on-off solenoid and Vickers on-off solenoid.
on-off solenoid actuator catalogue
|
TYPE |
APPLICATIONS |
MODELS |
POWER SYSTEM |
PROTECTION GRADE |
|---|---|---|---|---|
| Rexroth on-off solenoid | Rexroth directional control valves size 6, size10 | MFZ12-YC, MFZ12B-37YC,
MFJ12-YC, MFZ6-YC and etc. |
AC/DC | IP65 |
| Yuken on-off solenoid | Yuken directional control valves size 6, size10 | MFZ9-YC, MFJ9-YC, MFJ9A-YC, MFZ9A-YC(SG) and etc. | AC/DC | IP65 |
| Vickers on-off solenoid | Vickers directional control valves size 6, size10 | MFZ8(A)-YC, MFJ8/8A-28YC and etc. | AC/DC | IP65 |
| All standard and sizes customization are available. | ||||
solenoid
Proportional solenoid
Proportional solenoid, is an actuator that convert electrical signal into mechanical force and displacement. More specifically, proportional solenoid is used to keep mechanical force in proportion to the size of electrical signal. It is basically composed of coil, cover, plunger (also called core tube).
Like other solenoid, proportional solenoid is designed according to the electromagnetic induction principle. It can be precisely and quickly positioned at designated spot in a power-on state or power-off state.
Compared to on-off solenoid, proportional solenoids don’t have to choose between on or off. Core tube of proportional solenoid can be positioned at any point, which requires more complex technology of tube.
Proportional solenoid can be simply divided into several types, such as Proportional Solenoid (screw type), Proportional Solenoid (bolt type), Proportional Solenoid (3-pin type), Hydraulic Solenoid for Proportional Valve (GP series), Proportional Solenoid for Overflow Valve and Hydraulic Solenoid for Servo Valves.
Explosion-proof solenoid
As a core component of explosion-proof solenoid valve, explosion proof solenoid is used to control the valve. In general, some explosive gas mixture will be produced during working process of device, which requires a housing to enclose the assembly unit that may light explosive gas mixture. What explosion-proof solenoid does is help valve to ensure the safety. For its function and application, Explosion-proof solenoid is sometimes called explosion-proof solenoid or flameproof solenoid. Explosion-proof is made up of coil, explosion-proof enclosure, core tube, pole shoe, etc.
Explosion-proof solenoids generally apply for Ming industry flameproof Exd I Mb environment and chemical industry flameproof Exd II CT4 environment. The common models of explosion-proof solenoid include DTBZ-37FYC, DTBZ-90FYC, DTBZ12-37FYC, DTBZ10-90FYC, etc.
Except these three types of hydraulic solenoid mentioned above, there are many other kinds of solenoid have same function in different applications, including starter solenoid, transmission solenoid, and etc.
KaiDi who is specialized in manufacturing high-quality hydraulic solenoids supply AC or DC type solenoid for Rexroth, Yuken and Vickers on-off valves, proportional solenoid and explosion-proof solenoid, displacement sensor. All hydraulic solenoid can be customized, fast delivery and on-year warranty available.
